Dormer E500M16NO6 HSS Straight Flute Hand Tap M16 × 2mm (Pack of 3)

Dormer E500M16NO6 HSS Coarse STR Flute Tap M16 x2mm (Set Of 3)

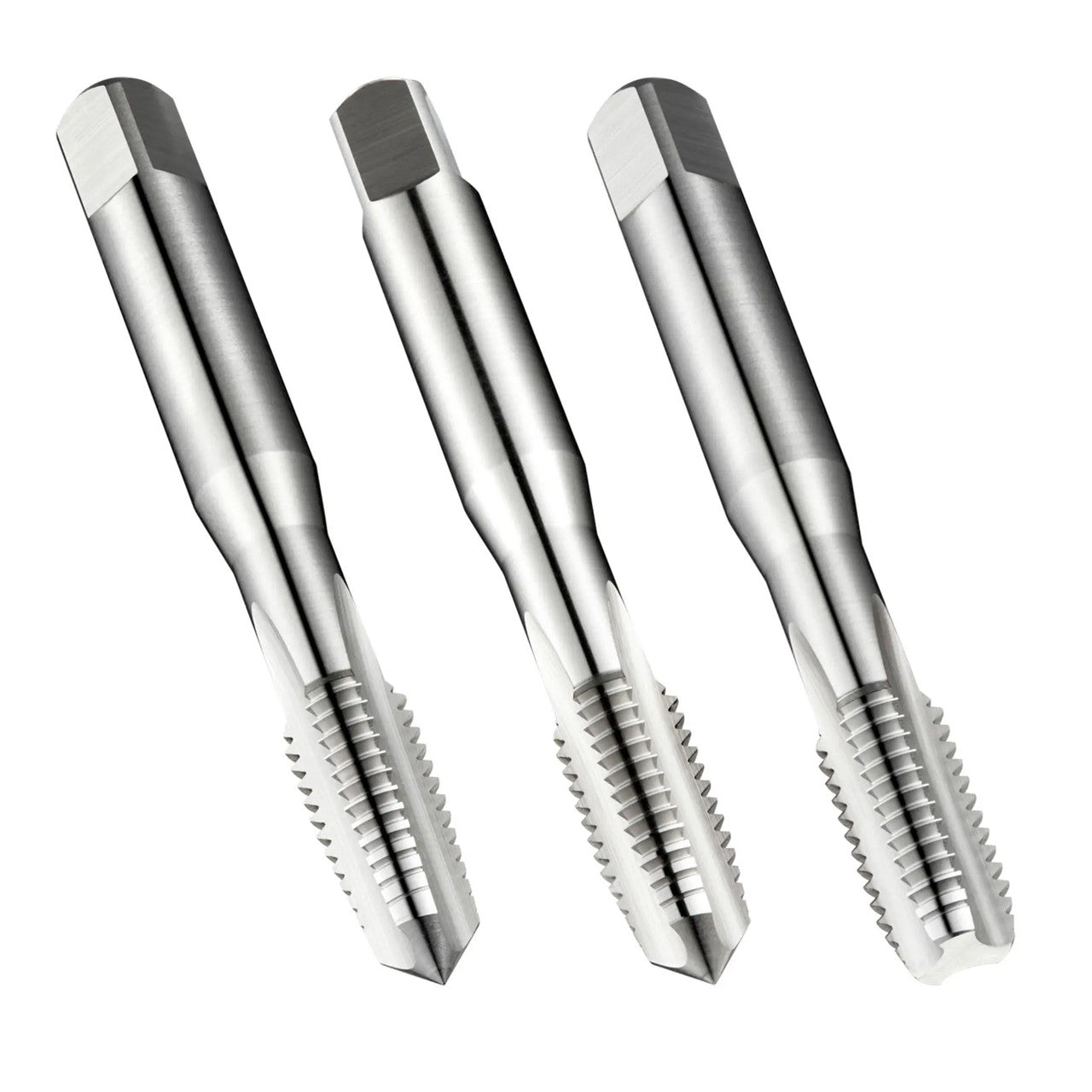

The Dormer E500M16NO6 is a set of 3 straight flute hand taps NO6 for ISO-Metric thread M16 with 2.00 mm pitch and 6H class of fit, consisting of 1 tap with a 6-8xP taper lead, 1 tap with a 4-6xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to ISO 529 standard with 12.5mm shank and 10.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.

Features:

• Bright (uncoated)

• Thread Form, Metric Coarse

• ISO 529 – Tap Standard

• DIN Thread Pitch Diameter Tolerance Zone high basic pitch

• Through or Blind Hole Application

• 1.5×D Usable Tool Depth to Diameter Ratio

• High Speed Steel Tool Material

• Straight Flute Geometry


Specification:

• Clamping Length: (LSC) 13 mm

• Clamping width: (WSC) 10 mm

• Connection diameter: (DCON MS) 12.5 mm

• Flute count (NOF) 4

• Overall length: (OAL) 102 mm

• Pre-machined hole diameter: (PHD) 14 mm

• Thread diameter size: (TDZ) 16

• Threading length: (THL) 24 mm

• Thread pitch: (TP) 2 mm

SKU: DOR-E500M16NO6
